HON MOVE®
Height adjustable frames
4 – LEG
- 4 - LEG 2 - SEGMENT
- 4 - LEG 3 - SEGMENT
- 4 - LEG - STRONG 2 - SEGMENT
- 4 - LEG - STRONG 3 - SEGMENT

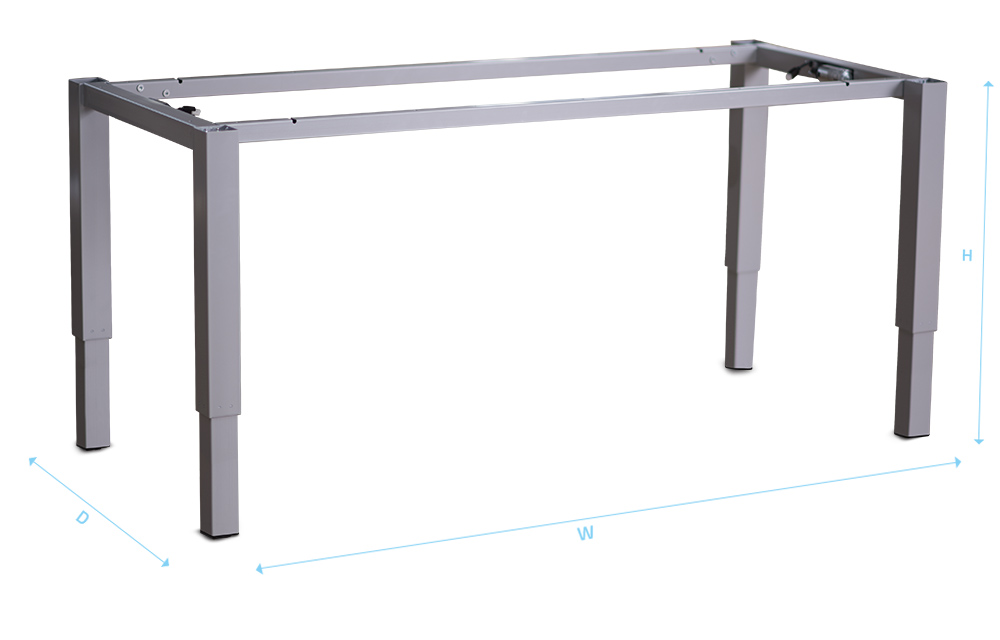

4 - LEG 2 - segment
- Selectable width W (without desktop): 1180 – 1980 mm (by 200 mm)
- Adjustable height H (without desktop): 680 – 1180 mm
- Depth D (without desktop): 780 mm
- Profile tube: 60 x 60 / 50 x 50 mm
- Maximum load capacity (desktop included): 80 kg
- Time load capacity: 10 %, max. 2 min. / 18 min.
- Lifting time: 30 mm / s
- Warranty: 3 years

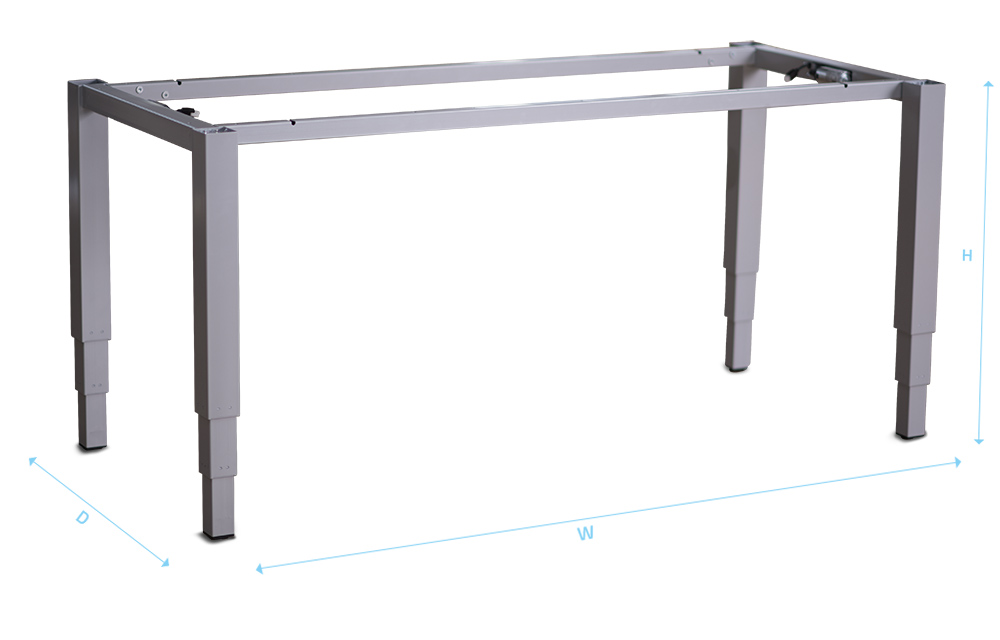

4 - LEG 3 - segment
- Selectable width W (without desktop): 1180 – 1980 mm (by 200 mm)
- Adjustable height H (without desktop): 580 – 1275 mm
- Depth D (without desktop): 780 mm
- Profile tube: 70 x 70 / 60 x 60 / 50 x 50 mm
- Maximum load capacity (desktop included): 80 kg
- Time load capacity: 10 %, max. 2 min. / 18 min.
- Lifting time: 30 mm / s
- Warranty: 3 years

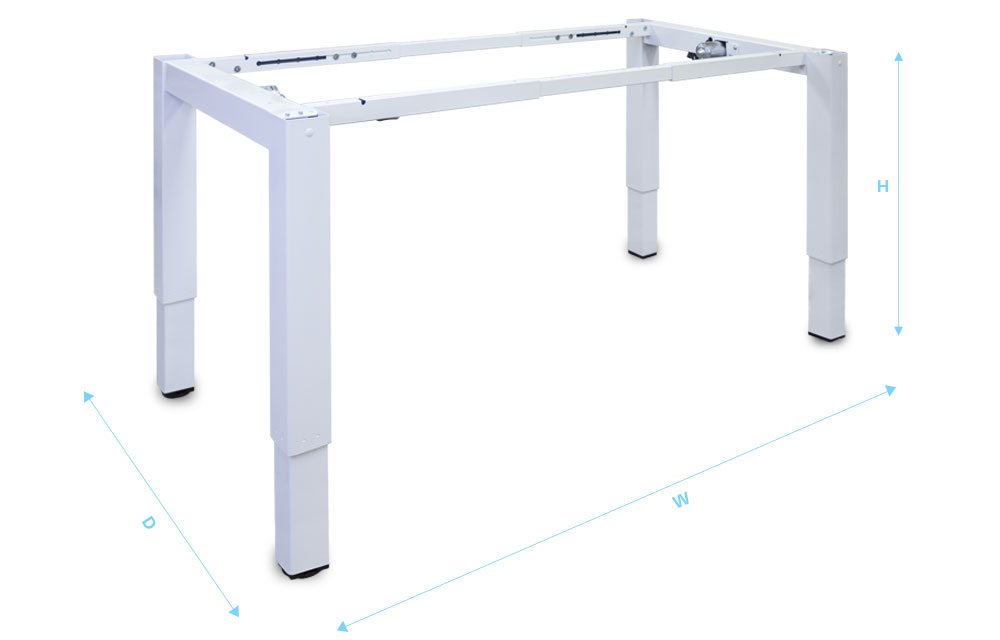

4 - LEG - STRONG 2 - segment
- Adjustable width W (without desktop): 1195 – 1795 / 1795 – 2595 mm (by 50 mm)
- Adjustable height H (without desktop): 680 – 1180 mm
- Depth D (without desktop): 795 mm
- Profile tube: 80 x 80 / 70 x 70 mm
- Maximum load capacity (desktop included): 100 kg
- Time load capacity: 10 %, max. 2 min. / 18 min.
- Lifting time: 30 mm / s
- Warranty: 5 years

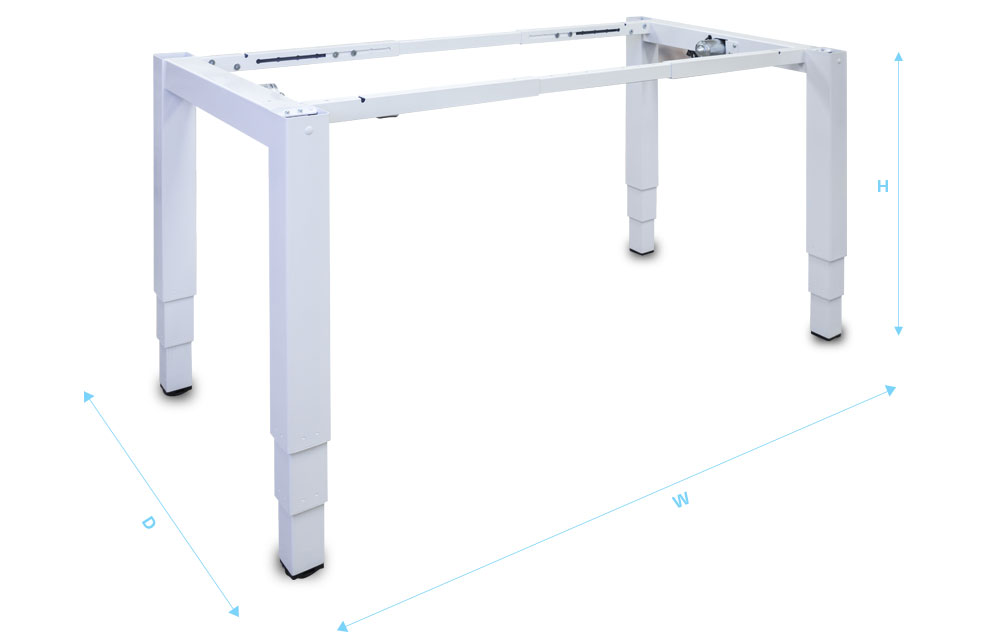

4 - LEG - STRONG 3 - segment
- Adjustable width W (without desktop): 1195 – 1795 / 1795 – 2595 mm (by 50 mm)
- Adjustable height H (without desktop): 580 – 1275 mm
- Depth D (without desktop): 795 mm
- Profile tube: 80 x 80 / 70 x 70 / 60 x 60 mm
- Maximum load capacity (desktop included): 100 kg
- Time load capacity: 10 %, max. 2 min. / 18 min.
- Lifting time: 30 mm / s
- Warranty: 5 years
