SIMPLEX

  • SIMPLEX 1 2 - SEGMENT
  • SIMPLEX 1 3 - SEGMENT

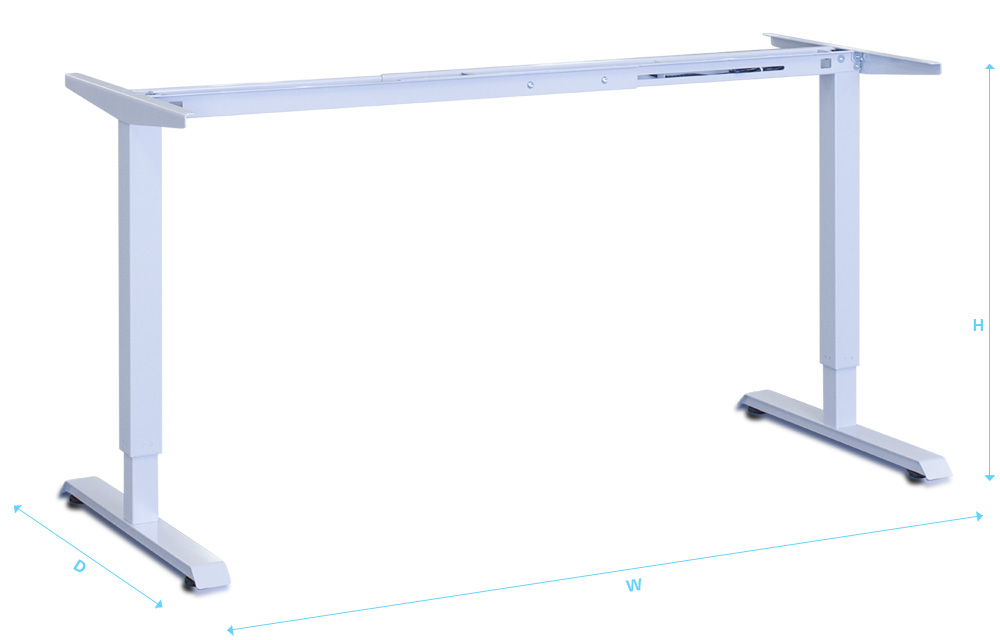

SIMPLEX 1 2 - segment, multimotor

  • Adjustable width W (without desktop): 1150 – 1750 mm
  • Adjustable height H (without desktop): 680 – 1180 mm
  • Depth D (without desktop): 675 mm
  • Profile tube: 60 x 60 / 50 x 50 mm
  • Maximum load capacity (desktop included): 80 kg
  • Time load capacity: 10 %, max. 2 min. / 18 min.
  • Lifting time: 35 mm / s
  • Warranty: 3 years

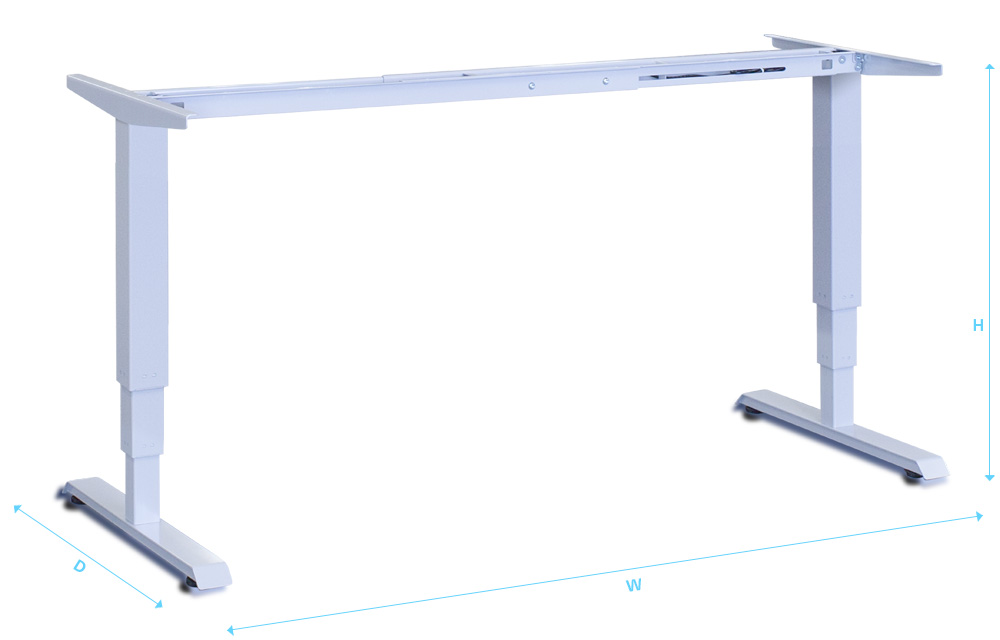

SIMPLEX 1 3 - segment, multimotor

  • Adjustable width W (without desktop): 1150 – 1750 mm
  • Adjustable height H (without desktop): 620 – 1280 mm
  • Depth D (without desktop): 675 mm
  • Profile tube: 70 x 70 / 60 x 60 / 50 x 50 mm
  • Maximum load capacity (desktop included): 80 kg
  • Time load capacity: 10 %, max. 2 min. / 18 min.
  • Lifting time: 35 mm / s
  • Warranty: 3 year
